Prepare sampling bias surfaces

Standardizes and combines one or more bias layers into a composite bias surface for use in biased occurrence sampling. Each layer is min-max normalized to [0, 1] and assigned a directional effect ("direct" or "inverse") before being multiplied together into a single composite surface.

Usage

prepare_bias(bias_surface, effect_direction = c("direct", "inverse"),
                    template_layer = NULL, include_composite = TRUE,
                    include_processed_layers = FALSE, mask_na = FALSE,
                    verbose = TRUE)

Arguments

bias_surface: A SpatRaster (single or multi-layer) or a list of SpatRaster objects representing the raw bias layers.
effect_direction: Character vector. Direction of effect for each bias layer. Each element must be "direct" (higher values increase sampling probability) or "inverse" (higher values decrease sampling probability). Length 1 recycles to all layers. Must otherwise match the number of bias layers.
template_layer: Optional SpatRaster. Reference layer used to align all bias layers (resolution, extent, CRS). If NULL (default), the finest-resolution bias layer is used as the template.
include_composite: Logical. If TRUE (default), includes the composite bias surface in the output.
include_processed_layers: Logical. If TRUE, includes the standardized individual layers (after directional transformation) in the output. Default is FALSE.
mask_na: Logical. Controls how NA values are handled when combining layers. If TRUE, uses the intersection of layer extents — any pixel with an NA in any layer becomes NA in the composite. If FALSE (default), uses the union of extents and ignores NAs where other layers have valid values.
verbose: Logical. If TRUE (default), prints progress messages.

Value

A named list with some or all of the following elements depending on the include_composite and include_processed_layers arguments:

composite_surface: A SpatRaster with the combined bias surface, named "standarized_composite_bias_surface".
processed_layers: A multi-layer SpatRaster with the standardized and direction-transformed individual layers.
combination_formula: A character string showing the formula used to combine layers (e.g., "sp_richness * (1-nighttime)").

Details

Each bias layer is processed as follows:

Resampled and cropped to the template grid if needed.
Min-max standardized to [0, 1].
Transformed by direction: "direct" layers are kept as-is; "inverse" layers are replaced by \(1 - x\).

The composite surface is the product of all transformed layers. If only one layer is provided, it is returned as-is.

If both include_composite and include_processed_layers are FALSE, the function defaults to include_composite = TRUE with a warning.

Examples

pred_rast <- terra::rast(system.file("extdata/predictions_rast.tif",
                                     package = "nicheR"))

bias_rast <- terra::rast(system.file("extdata/ma_biases.tif",
                                     package = "nicheR"))

# Single layer, direct effect (higher values increase sampling probability)
bias_single <- prepare_bias(bias_surface = bias_rast[[1]],
                            effect_direction = "direct")
#> Starting: prepare_bias()
#> Step: splitting SpatRaster into layers...
#> Step: bias_surface is a SpatRaster. Using first layer as template surface...
#> Step: mask_na = FALSE. Expanding template to union extent (keeping finest resolution).
#> Step: standarizing (min/max) and applying direction of effect to 1 bias layer/s...
#> Step: building standarized (min/max) directional composite bias surface (mask_na = FALSE)...
#> Done: prepare_bias()
bias_single$composite_surface
#> class       : SpatRaster
#> size        : 150, 240, 1  (nrow, ncol, nlyr)
#> resolution  : 0.1666667, 0.1666667  (x, y)
#> extent      : -100, -60, 5, 30  (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat WGS 84 (EPSG:4326)
#> source(s)   : memory
#> varname     : ma_biases
#> name        : standarized_composite_bias_surface
#> min value   :                                  0
#> max value   :                                  1

# Two layers: first direct, second inverse
bias_two <- prepare_bias( bias_surface = bias_rast[[c(1, 2)]],
                          effect_direction = c("direct", "inverse"),
                          include_processed_layers = TRUE)
#> Starting: prepare_bias()
#> Step: splitting SpatRaster into layers...
#> Step: bias_surface is a SpatRaster. Using first layer as template surface...
#> Step: mask_na = FALSE. Expanding template to union extent (keeping finest resolution).
#> Step: standarizing (min/max) and applying direction of effect to 2 bias layer/s...
#> Step: building standarized (min/max) directional composite bias surface (mask_na = FALSE)...
#> Done: prepare_bias()

bias_two$combination_formula
#> [1] "sp_richness * (1-nighttime)"

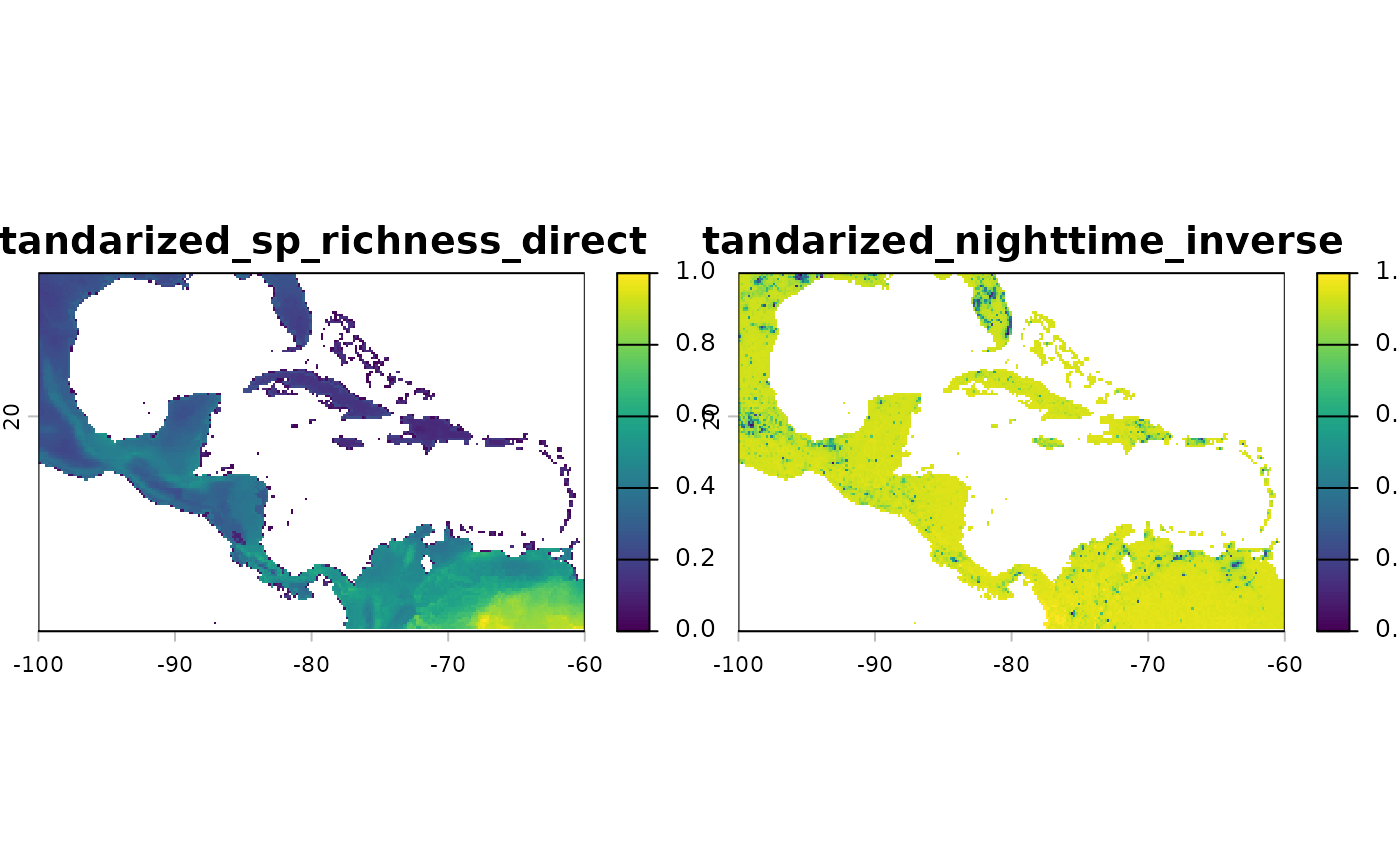

terra::plot(bias_two$processed_layers)

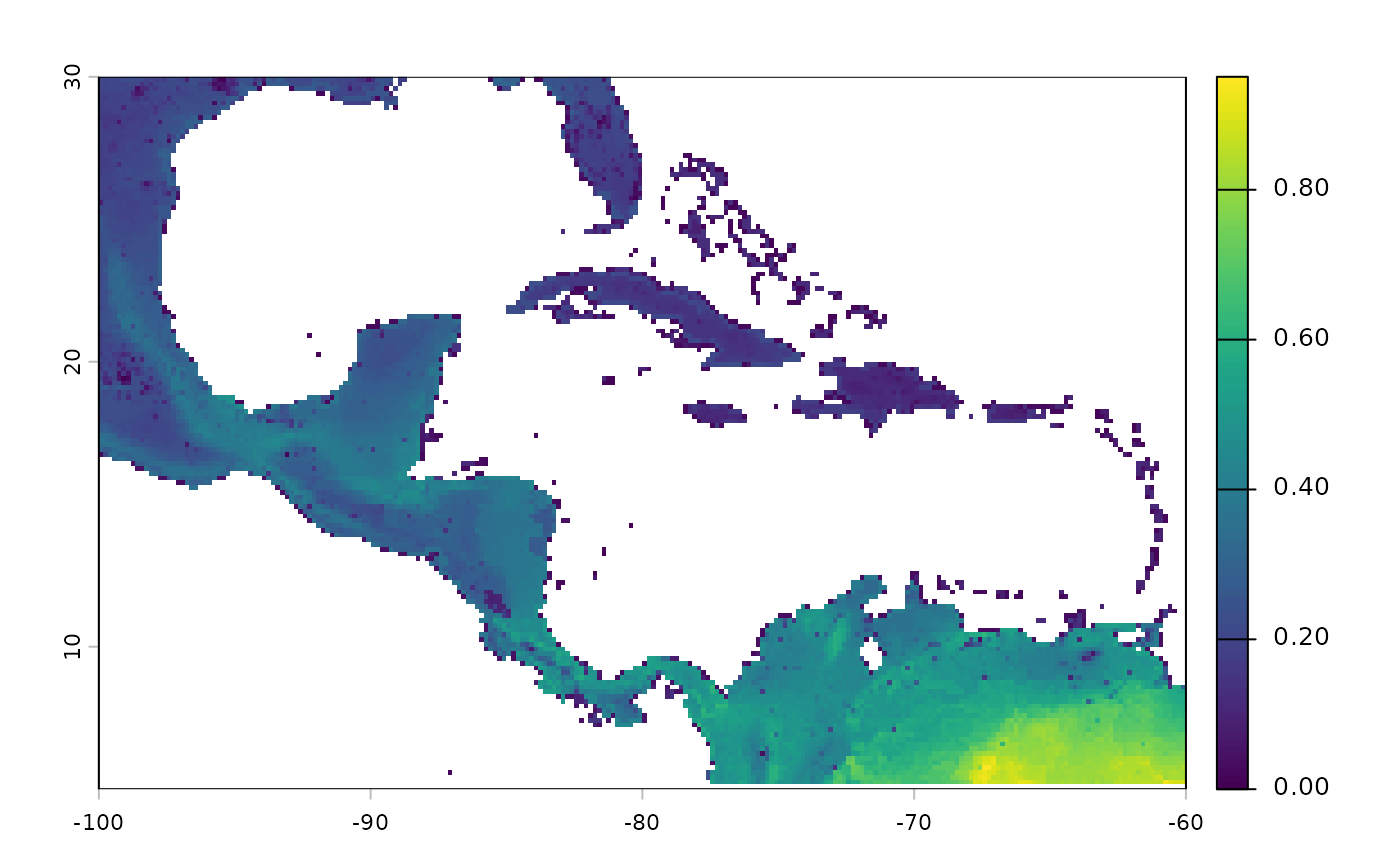

terra::plot(bias_two$composite_surface)
